High Quality Brazed Plate Heat Exchanger Refrigeration plate heat exchanger For Refrigeration
- Model
- Brazed Plate Heat Exchanger
Item specifics
- Woking Tempreture
- -196~+200
- Structure
- Single Flow/Double Flow
- Custmized
- Available
Review
Description

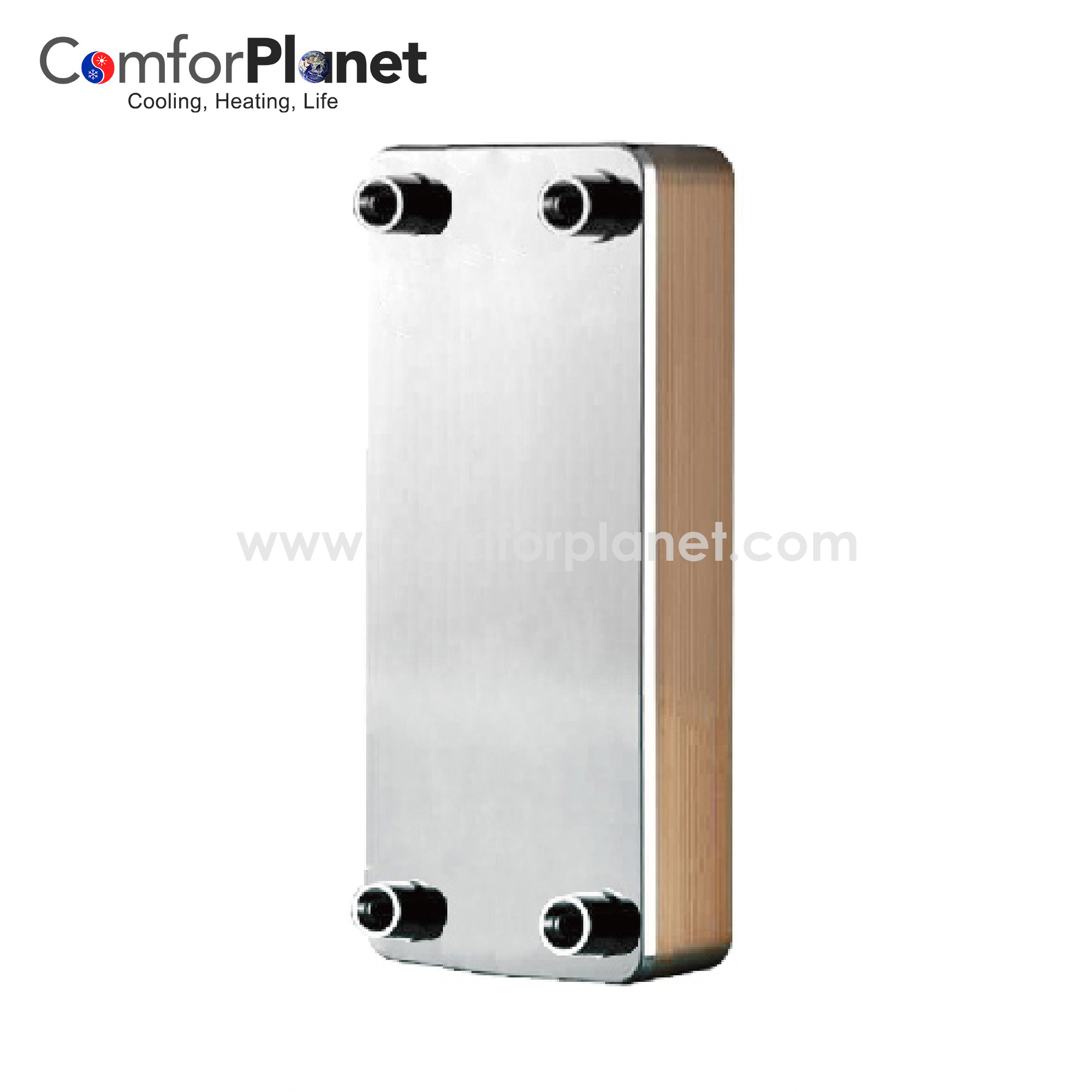

Brazed Plate Heat Exchanger
In single flow path structure, two fluids will flow continuously through every channel plate. In double flow paths structure, the flowing direction of two fluids will be re-lead by special channels which resulted the effects as two exchangers connected in series.Besides single and double flow paths structure, we also provide many other working modes and customized solutions.
PRODUCT DESCRIPTION
|
Model
|
Heat Exchanger Area
|
Design Pressure
|
Temperature
|
Plate Channel | Max Welding Pipe | Max Threaded Pipe |
|
B3-006
|
(n-2)*0.060
|
1.0/3.0
|
-196~+200
|
H | 7/8 | 3/4 |
|
B3-012
|
(n-2)*0.012
|
1.0/3.0
|
-196~+200
|
H | 7/8 | 3/4 |
|
B3-014
|
(n-2)*0.014
|
3.0/4.5
|
-196~+200
|
H/M/L | 7/8 | 3/4 |
B3-022 | (n-2)*0.022 | 3.0/4.5 | -196~+200 | H/M/L | 7/8 | 3/4 |
B3-027 | (n-2)*0.027 | 3.0/4.5 | -196~+200 | H/M/L | 1-3/8 | 1 1/4 |
B3-030 | (n-2)*0.030 | 3.0/4.5 | -196~+200 | H | 1 | 1 |
B3-052 | (n-2)*0.052 | 3.0/4.5 | -196~+200 | H/M/L | 1-3/8 | 1 1/4 |
B3-095 | (n-2)*0.095 | 3.0/4.5 | -196~+200 | H/M/L | 2-1/8 | 2 |
B3-120 | (n-2)*0.120 | 3.0/4.5 | -196~+200 | H | 2-1/8 | 2 |
B3-136 | (n-2)*0.136 | 3.0/4.5 | -196~+200 | H/M/L | 3-1/8 | 3 |
B3-210 | (n-2)*0.210 | 3.0/4.5 | -196~+200 | H | 3-1/8 | 4 |
B3-310 | (n-2)*0.310 | 3.0/4.5 | -196~+200 | H | 5 | 5 |
FAQ
Q: How about the Delivery time?
A: About 20-35 days.
Q: What kind of payments does jenor support?
A: T/T,L/C,D/Pare accepted or other methods negotiable.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We can produce the product under your brand name, also the size can be changed as your requirement.
