China High-Performance V Type Condenser With Factory Price
- Model
- CFV
Item specifics
- Material
- Steel
- Shape
- V
- Capacity
- 24.8-165.6 KW
Review
Description

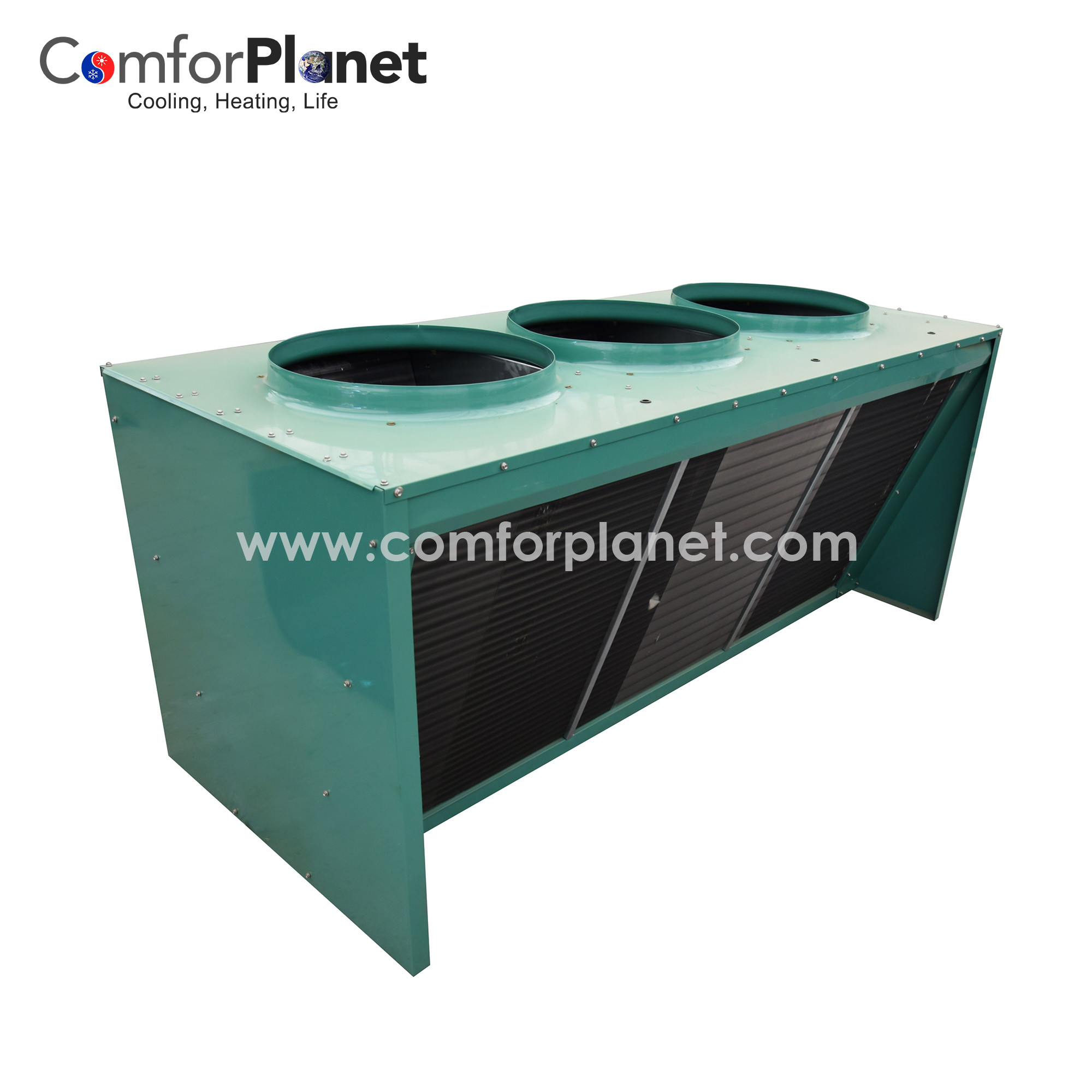

V Type Condenser CVF
The INV series air cooled condensers are designed to work with the most common refrigerants such as R-410A, R-404A, R-507A, …R-134A.
Space-saving construction due to the V-type arrangement of heat exchanger coils. The capacity range is from 25kW to 165kW suitable for use in most large scale refrigeration and air conditioning condenser applications.
PRODUCT DESCRIPTION
CFV 35 / 100
| | |
| | 100 Heat exchange area
| 35 Nominal heat exchange capacity
CFV Code of series
|
Model
|
Nominal capacity
|
Heat Exchange | Air Flow | Total Consumed |
Fan Q'ty × φ(mm)
|
Connection Inlet-Qutlet
|
KW, △ t: 15K | Area m² | m³/h | Power, KW | mm | ||
CFV-25/72 | 24.8 | 72 | 1 × 8720 | 0.60 | 1 × 550 | 22 - 16 |
CFV-30/87 | 30.1 | 87 | 1 × 10820 | 0.78 | 1 × 600 | 25 - 16 |
CFV-39/110 | 39.1 | 110 | 2 × 6570 | 0.90 | 2 × 500 | 25 - 16 |
CFV-45/130 | 44.9 | 130 | 2 × 8720 | 1.20 | 2 × 550 | 28 - 19 |
CFV-55/155 | 55.0 | 155 | 2 × 8720 | 1.20 | 2 × 550 | 28 - 19 |
CFV-64/185 | 63.8 | 185 | 2 × 10820 | 1.56 | 2 × 600 | 28 - 22 |
CFV-73/210 | 72.7 | 210 | 2 × 12200 | 1.60 | 2 × 630 | 32 - 22 |
CFV-83/240 | 82.8 | 240 | 2 × 15000 | 1.50 | 2 × 700 | 32 - 22 |
CFV-104/300 | 103.8 | 300 | 2 × 19000 | 2.20 | 2 × 750 | 35 - 25 |
CFV-111/320 | 111.0 | 320 | 2 × 19000 | 2.20 | 2 × 750 | 38 - 25 |
|
CFV-125/360
|
124.6
|
360 | 3 × 13200 | 1.65 |
3 × 650
|
42 - 28
|
|
CFV-138/400
|
138.4
|
400 | 3 × 15000 | 2.25 |
3 × 700
|
42 - 28
|
|
CFV-166/480
|
165.6
|
480 | 3 × 19000 | 3.30 |
3 × 750
|
54 - 28
|
FAQ
Q: How about the Delivery time?
A: About 20-35 days.
Q: What kind of payments does jenor support?
A: T/T,L/C,D/Pare accepted or other methods negotiable.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We can produce the product under your brand name, also the size can be changed as your requirement.
